Honda CR-V: Cylinder Head
Special Tools
- Air Pressure Regulator
- Valve Guide Reamer, 5.5 mm
- Socket, 19 mm
- Holder Handle
- Adjuster
- Locknut Wrench
- Stem Seal Driver
- VTEC Air Adapter
- VTEC Air Stopper
- Air Joint Adapter
- Crankshaft Pulley Holder
- Valve Guide Driver, 5.5 mm
- Attachment, 52 x 55 mm
- Driver
- Valve Spring Compressor Attachment

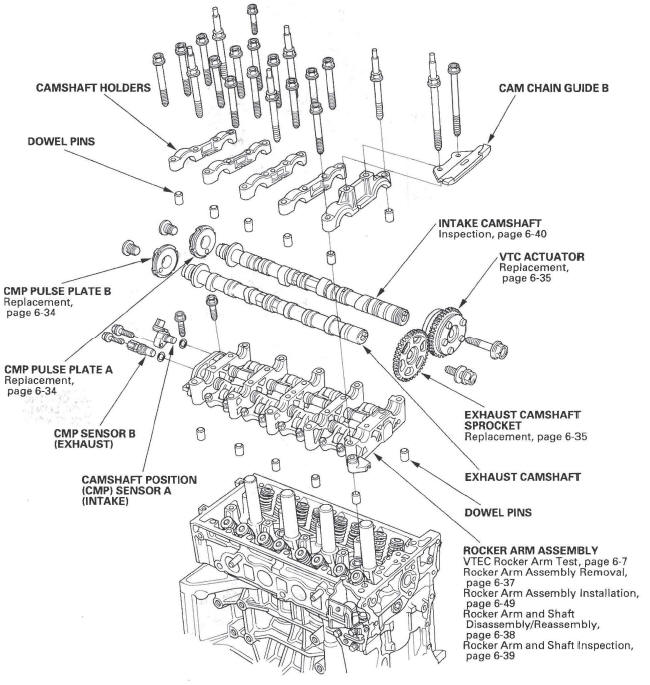

Component Location Index
-
IGNITION COIL COVER
-
CYLINDER HEAD COVER
-
CAM CHAIN
-
CAM CHAIN GUIDE B
-
CAM CHAIN GUIDE A
-
O-RING
-
VARIABLE VALVE TIMING CONTROL (VTC) OIL CONTROL
SOLENOID VALVE -
CRANKSHAFT PULLEY
-
CRANKSHAFT PULLEY BOLT
-
CHAIN CASE COVER
-
CHAIN CASE
-
CRANKSHAFT POSITION (CKP) SENSOR
-
AUTO-TENSIONER
-
TENSIONER ARM
-
CAM CHAIN GUIDE B
-
INTAKE CAMSHAFT
-
VTC ACTUATOR
-
EXHAUST CAMSHAFT SPROCKET
-
EXHAUST CAMSHAFT
-
DOWEL PINS
-
ROCKER ARM ASSEMBLY
-
CAMSHAFT HOLDERS
-
CMP PULSE PLATE B
-
CMP PULSE PLATE A
-
CMP SENSOR B (EXHAUST)
-
CMP SENSOR A (INTAKE)
-
CYLINDER HEAD BOLT
-
INTAKE VALVE SPRING
-
INTAKE VALVE SEAL
-
INTAKE VALVE GUIDE
-
INTAKE VALVE
-
CYLINDER HEAD GASKET
-
ROCKER ARM OIL CONTROL
SOLENOID FILTER -
ROCKER ARM OIL
CONTROL SOLENOID -
HEAT SHIELD
-
EXHAUST VALVE GUIDE
-
EXHAUST VALVE SPRING
-
VALVE COTTERS
-
SPRING RETAINER
-
EXHAUST VALVE SEAL
-
VALVE SPRING SEAT
- Engine Compression Inspection
- Valve Clearance Adjustment
- Cam Chain Removal
- Cam Chain Installation
- Auto-tensioner Removal and Installation
- Cam Chain Inspection
- CKP Pulse Plate Replacement
- Cylinder Head Cover Removal/Installation
- Cylinder Head Removal
- VTC Actuator, Exhaust Camshaft Sprocket Replacement
- Camshaft Inspection
- Valve, Spring, and Valve Seal Removal
- Valve, Spring, and Valve Seal Installation
- Cylinder Head Installation
