Honda CR-V: Connectors and Harnesses

Connector Index

Identification numbers have been assigned to in-line connectors, junction connectors, and terminals. The number is preceded by the letter ºC" for connectors "G" for ground terminals or "T" for non-ground terminals.

Honda CR-V. Connectors and Harnesses

* 1. With seat heater
* 2: Without seat heater

Connector to Harness Index

Starter Subharness

Honda CR-V. Connectors and Harnesses

Battery Ground Cable

Honda CR-V. Connectors and Harnesses

Engine Ground Cable

Honda CR-V. Connectors and Harnesses

Honda CR-V. Connectors and Harnesses

Engine Wire Harness

Honda CR-V. Connectors and Harnesses

Honda CR-V. Connectors and Harnesses

Engine Wire Harness

Honda CR-V. Connectors and Harnesses

Shift Solenoid Wire Harness

Honda CR-V. Connectors and Harnesses

Honda CR-V. Connectors and Harnesses

Front Engine Compartment Wire Harness

Honda CR-V. Connectors and Harnesses

Honda CR-V. Connectors and Harnesses

Engine Compartment Wire Harness

Honda CR-V. Connectors and Harnesses

Honda CR-V. Connectors and Harnesses

Engine Compartment Wire Harness (Left branch)

Honda CR-V. Connectors and Harnesses

Windshield Wiper Motor Subharness

Honda CR-V. Connectors and Harnesses

Honda CR-V. Connectors and Harnesses

Engine Compartment Wire Harness (Right branch)

Honda CR-V. Connectors and Harnesses

Honda CR-V. Connectors and Harnesses

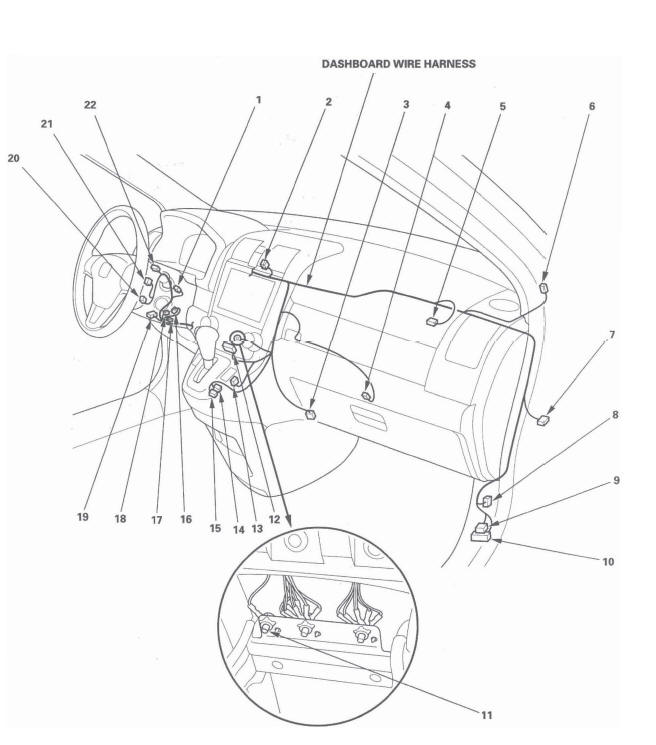

Dashboard Wire Harness (View of driver's side)

Honda CR-V. Connectors and Harnesses

Honda CR-V. Connectors and Harnesses

Dashboard Wire Harness (View of middle)

Honda CR-V. Connectors and Harnesses

* 1. With navigation
* 2: Without navigation
* 3: With navigation and rearview camera
* 4: With seat heater

Honda CR-V. Connectors and Harnesses

Dashboard Wire Harness (View of passenger's side)

Honda CR-V. Connectors and Harnesses

* 1. With seat heater
* 2: EX and EX-L models
* 3: With XM radio

Honda CR-V. Connectors and Harnesses

Floor Wire Harness

Honda CR-V. Connectors and Harnesses

* 1. With seat heater
* 2: Without seat heater
* 3: With navigation
* 4: With XM radio

Honda CR-V. Connectors and Harnesses

Side Wire Harness (Left branch)

Honda CR-V. Connectors and Harnesses

Honda CR-V. Connectors and Harnesses

Side Wire Harness (Right branch)

Honda CR-V. Connectors and Harnesses

Fuel Tank Subharness

Honda CR-V. Connectors and Harnesses

Honda CR-V. Connectors and Harnesses

Roof Wire Harness

Honda CR-V. Connectors and Harnesses

Honda CR-V. Connectors and Harnesses

Tailgate Wire Harness

Honda CR-V. Connectors and Harnesses

Honda CR-V. Connectors and Harnesses

Driver's Door Wire Harness

Honda CR-V. Connectors and Harnesses

Honda CR-V. Connectors and Harnesses

Front Passenger's Door Wire Harness

Honda CR-V. Connectors and Harnesses

Left Rear Door Wire Harness

Honda CR-V. Connectors and Harnesses

Right Rear Door Wire Harness

Honda CR-V. Connectors and Harnesses

Console Subharness (EX-L only)

Honda CR-V. Connectors and Harnesses

Table Subharness (EX only)

Honda CR-V. Connectors and Harnesses

Driver's Seat Heater Subharness (With Seat Heater)

Honda CR-V. Connectors and Harnesses

Driver's Seat Position Sensor Harness

Honda CR-V. Connectors and Harnesses

* 1: With seat heater
* 2: Without seat heater

Honda CR-V. Connectors and Harnesses

ODS Unit Harness

Honda CR-V. Connectors and Harnesses

* 1: With seat heater
* 2: Without seat heater

Honda CR-V. Connectors and Harnesses

Front Passenger's Seat Subharness (With Seat Heater)

Honda CR-V. Connectors and Harnesses

Front Passenger's Seat Heater Subharness (With Seat Heater)

Honda CR-V. Connectors and Harnesses

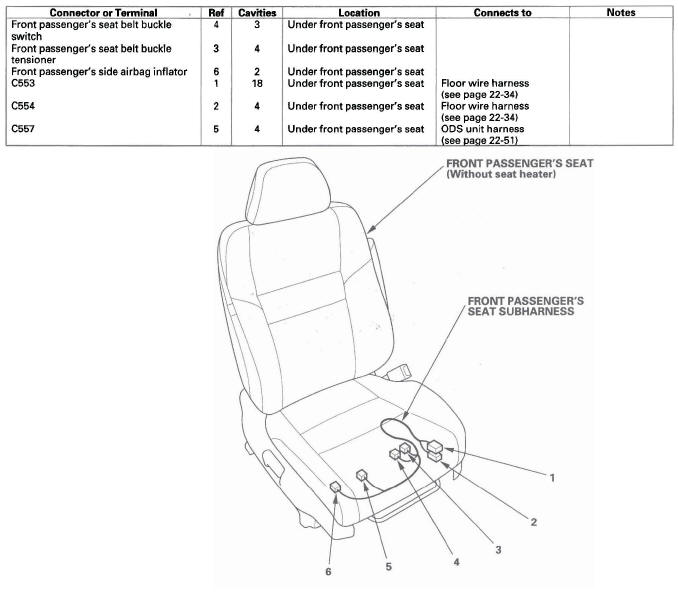

Front Passenger's Seat Subharness (Without Seat Heater)

Honda CR-V. Connectors and Harnesses

Cable Reel Subharness

Honda CR-V. Connectors and Harnesses

*: With navigation

Honda CR-V. Connectors and Harnesses

A/C Wire Harness

Honda CR-V. Connectors and Harnesses

Fuse/Relay Boxes

Connector to Fuse/Relay Box Index

Under-hood Fuse/Relay Box

Honda CR-V. Fuse/Relay Boxes

Under-dash Fuse/Relay Box

Honda CR-V. Fuse/Relay Boxes

Power Distribution

Fuse to Components Index

Under-hood Fuse/Relay Box

Honda CR-V. Power Distribution

Honda CR-V. Power Distribution

Under-dash Fuse/Relay Box

Honda CR-V. Power Distribution

Honda CR-V. Power Distribution

Ground Distribution

Ground to Components Index

Honda CR-V. Ground Distribution
