Honda CR-V: Tire Markings

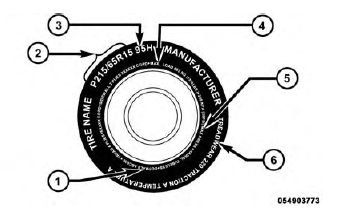

Tire Markings

  1. U.S. DOT Safety Standards Code (TIN)
  2. Size Designation
  3. Service Description
  4. Maximum Load
  5. Maximum Pressure
  6. Treadwear, Traction and Temperature Grades


Tire Sizing Chart


  Size Designation:

P = Passenger car tire size based on U.S. design standards
....blank.... = Passenger car tire based on European design standards
LT = Light truck tire based on U.S. design standards
T or S = Temporary spare tire
31 = Overall diameter in inches (in)
215 = Section width in millimeters (mm)
65 = Aspect ratio in percent (%)
        - Ratio of section height to section width of tire
10.5 = Section width in inches (in)
R = Construction code
       - R means radial construction
       - D means diagonal or bias construction
15 = Rim diameter in inches (in)

  Service Description:

95 = Load Index
        - A numerical code associated with the maximum load a tire can carry
H = Speed Symbol
       - A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load index under certain operating conditions
       - The maximum speed corresponding to the speed symbol should only be achieved under specified operating conditions (i.e., tire pressure, vehicle loading, road conditions, and posted speed limits)

  Load Identification:

"....blank...." = Absence of any text on the sidewall of the tire indicates a Standard Load (SL) tire
Extra Load (XL) = Extra load (or reinforced) tire
Light Load (LL) = Light load tire
C, D, E, F, G = Load range associated with the maximum load a tire can carry at a specified pressure

  Maximum Load - Maximum load indicates the maximum load this tire is designed to carry
  Maximum Pressure - Maximum pressure indicates the maximum permissible cold tire inflation pressure for this tire


 Tire Identification Number (TIN)

The TIN may be found on one or both sides of the tire, however, the date code may only be on one side. Tires with white sidewalls will have the full TIN, including the date code, located on the white
