Honda CR-V: Steering Wheel Audio Controls - If Equipped
The remote sound system controls are located on the back surface of the steering wheel. Reach behind the wheel to access the switches.
.png)

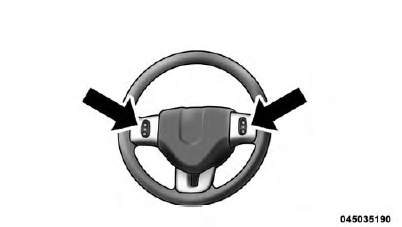

Remote Sound System Controls (Back View Of Steering
Wheel)
The right hand control is a rocker type switch with a pushbutton in the center. Pressing the top of the switch will increase the volume, and pressing the bottom of the switch will decrease the volume.
The button located in the center of the right hand control will switch modes to Radio, CD or other valid audio sources.
The left hand control is a rocker type switch with a pushbutton in the center. The function of the left hand control is different depending on which mode you are in.
The following describes the left hand control operation in each mode.
Radio Operation
Pressing the top of the switch will SEEK up for the next listenable station and pressing the bottom of the switch will SEEK down for the next listenable station.
The button located in the center of the left hand control will tune to the next pre-set station that you have programmed in the radio pre-set pushbuttons.
CD Player
Pressing the top of the switch once will go to the next track on the CD. Pressing the bottom of the switch once will go to the beginning of the current track or to the beginning of the previous track if it is within eight seconds after the current track begins to play.
If you press the switch up or down twice it plays the second track, three times, it will play the third, etc.
