Honda CR-V: ParkSense Display
When the vehicle is in REVERSE, the warning display will turn ON indicating the system status.
The system will indicate a detected obstacle by showing a single arc in the left and/or right rear regions based on the object's distance and location relative to the vehicle.
If an object is detected in the left and/or right rear region, the display will show a single solid arc in the left and/or right rear region and the system will produce a tone. As the vehicle moves closer to the object, the display will show the single arc moving closer to the vehicle and the tone will change from a single 1/2 second tone to slow, to fast, to continuous.
.png)
Single 1/2 Second Tone
.png)
Slow Tone
.png)
Fast Tone
.png)
Continuous Tone

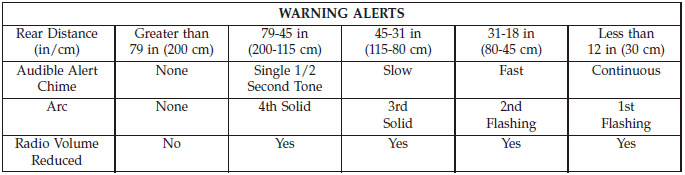

The vehicle is close to the obstacle when the warning display shows one flashing arc and sounds a continuous tone. The following chart shows the warning alert operation when the system is detecting an obstacle:
.png)
NOTE: ParkSense will reduce the volume of the radio, if on, when the system is sounding an audio tone.
