Ram Truck 1500 2500 3500 Owner's Manual / Understanding Your Instrument Panel / Instrument Panel Features

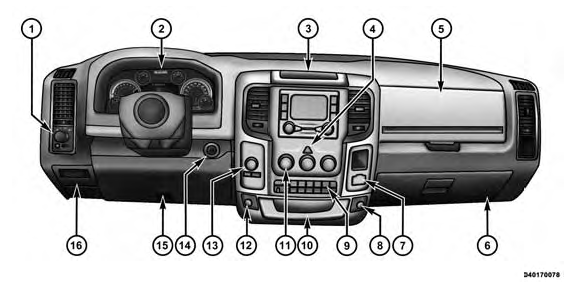

Instrument Panel Features

  1. Headlight Switch
  2. Instrument Cluster
  3. Radio
  4. Hazard Switch
  5. Upper Glove Compartment
  6. Lower Glove Compartment
  7. 115v Power Inverter Outlet
  8. Power Outlet - If Equipped
  9. Lower Switch Bank
  10. Instrument Panel Drawer
  11. Climate Controls
  12. Power Outlet - If Equipped
  13. Gear Selector/Transfer Case Position Switch - If Equipped
  14. Ignition Switch
  15. Hood Release
  16. Parking Brake Release

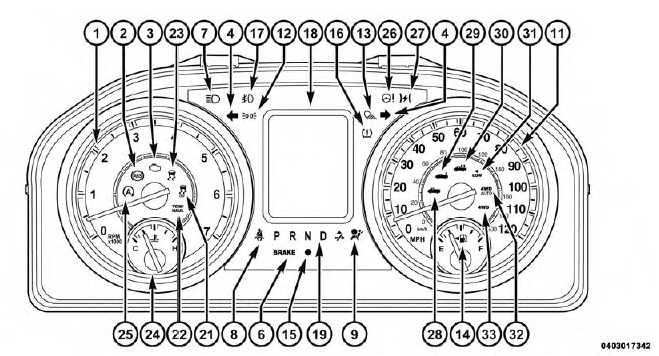

Instrument Cluster - Midline

Instrument Cluster - Midline

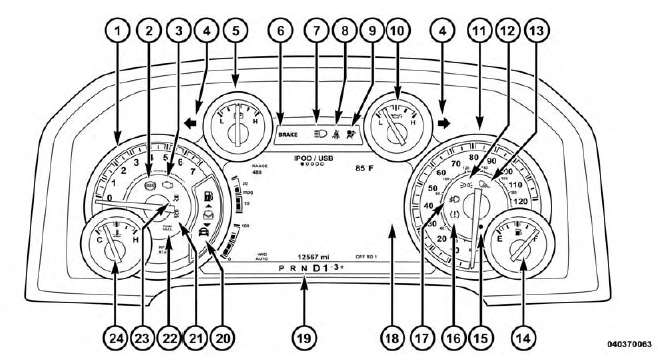

Instrument Cluster - Premium

Instrument Cluster - Premium
