Honda CR-V: Fold Flat Load Floor - If Equipped

Quad Cab and Crew Cab models with a 60/40 rear seat may be equipped with a folding load floor.

WARNING! Do not operate the vehicle with loose items stored on the load floor. While driving or in an accident you may experience abrupt stopping, rapid acceleration, or sharp turns. Loose objects stored on the load floor may move around with force and strike occupants, resulting in serious or fatal injury.

Unfolding the Load Floor

1. Lift the 60/40 seat cushion(s) to the upward position.

Fold Flat Load Floor - If Equipped

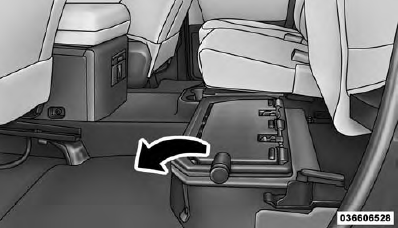

Unfolding The Load Floor

2. Grasp the knob on the load floor and lift the knob until the load floor unfolds into position.

Fold Flat Load Floor - If Equipped

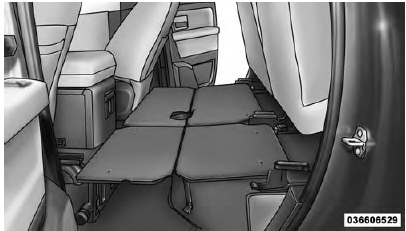

Load Floor In Open Position

3. Reverse the procedure to store the load floor.

Positioning the Load Floor for Storage Access Under the Seat

1. Lift the 60/40 seat cushion(s) to the upward position.

2. Unsnap the securing snap located at either side of the load floor.

3. Lift the load floor up to access storage under the load floor.

WARNING! Do not drive with the load floor in the up position.

When stopping fast or in an accident, the load floor could move to the down position causing serious injury.

Fold Flat Load Floor - If Equipped

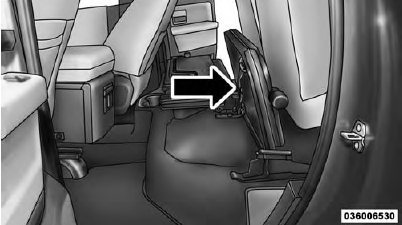

Load Floor Securing Straps

4. Reverse the procedure to put the load floor back in the secured down position before you operate the vehicle.


 Pickup Box

The pickup box has many features designed for utility and convenience. Pick Up Box Features Upper Load Floor Indents Bulk Head Dividers Cleats NOTE: If you are installing a Toolbox, Ladder Rack

 RamBox - If Equipped

The RamBox system is an integrated pickup box storage and cargo management system consisting of three features: Integrated box side storage bins Cargo extender/divider Bed rail tie-down system

 RamBox Integrated Box Side Storage Bins

Cargo storage bins are located on both sides of the pickup box. The cargo storage bins provide watertight, lockable, illuminated storage for up to 150 lbs (68 kg) for 1500 series vehicles or 300 lbs (


 To Play a PC Card

You operate the PC card player with the same controls used for the radio and the disc player. To load or play a card, the ignition switch must be in the ACCESSORY (I) or ON (II) position. The PC card player reads and plays cards in MP3 or WMA formats. Depending on the format, the scree


Your dealer has Honda accessories that allow you to personalize your vehicle. These accessories have been designed and approved for your vehicle, and are covered by warranty. Although non-Honda accessories may fit on your vehicle, they may not meet factory specifications, and could ad
