Honda CR-V: Electronic Vehicle Information Center (EVIC)
The Electronic Vehicle Information Center (EVIC) features a driver-interactive display that is located in the instrument cluster.
.png)

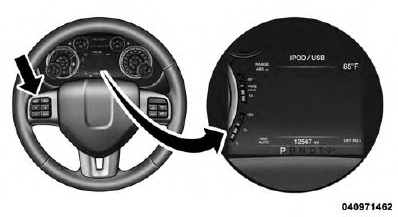

Electronic Vehicle Information Center (EVIC)
The EVIC Menu items consists of the following:
- Digital Speedometer
- Vehicle Info
- Fuel Economy Info
- Trip A
- Trip B
- Stop/Start Info (If Equipped)
- Trailer Tow
- Audio
- Stored Messages
- Screen Setup
- Vehicle Settings (Not Equipped with a Uconnect 5.0 & 8.4 radio)
The system allows the driver to select information by pressing the following buttons mounted on the steering wheel:
.png)

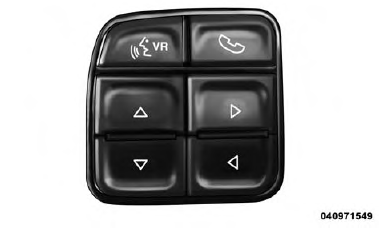

EVIC Steering Wheels Buttons
- UP Arrow Button
.png)
Press and release the UP arrow
button to scroll
upward through the main menu and submenus
(Fuel Economy, Trip A, Trip B, Audio,
Stored Messages, Screen Set Up).
- DOWN Arrow Button
.png)
Press and release the DOWN arrow
button to
scroll downward through the main menu and
sub-menus (Fuel Economy, Trip A, Trip B,
Audio, Stored Messages, Screen Set Up).
- SELECT/RIGHT Arrow Button
.png)
Press and release the
SELECT/RIGHT arrow
button to access/select the information screens
or sub-menu screens of a main menu item.
Press and hold the SELECT/RIGHT arrow button for two seconds to reset displayed/selected features that can be reset.
- LEFT Arrow Button
.png)
Press the LEFT arrow button to
return to the
main menu from an info screen or sub-menu
item.
