The air suspension system is a rear leveling ride height system. The main purpose of this system is to maintain the truck's rear ride height level.

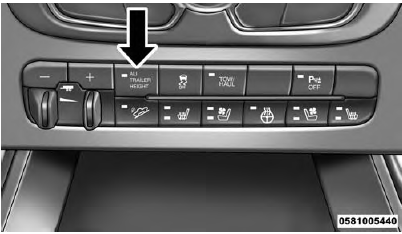

Rear Leveling Ride Height Switch

Normal Ride Height (NRH) - This is the standard position of the suspension and is meant for normal driving.

Trailer Mode (Lowers the vehicle approximately 1 in (25 mm) - This position will lower the rear suspension and provide load leveling for all loading conditions including towing a trailer. The trailer button will blink continuously until trailer height has been achieved.

The system requires that the ignition be in ON/RUN position or the engine running for all user requested changes.

After the engine is turned off, it may be noticed that the air suspension system operates briefly, this is normal. The system is correcting the position of the vehicle to ensure a proper appearance.

NOTE: If equipped with a touch screen radio all enabling/disabling of air suspension features must be done through the radio. Refer to "Uconnect Access Settings" in "Understanding Your Instrument Panel" for further information.

WARNING! The air suspension system uses a high pressure volume of air to operate the system. To avoid personal injury or damage to the system, see your authorized dealer for service.


 Air Suspension Modes

The Air Suspension system has multiple modes to protect the system in unique situations: Tire/Jack Mode To assist with changing a spare tire, the air suspension system has a feature which allows the a


Pushing the Trailer Mode button once, while at Normal Ride Height (NRH) will lower the vehicle to trailer level. NOTE: The LED will continuously blink until vehicle trailer level that been achieved.
